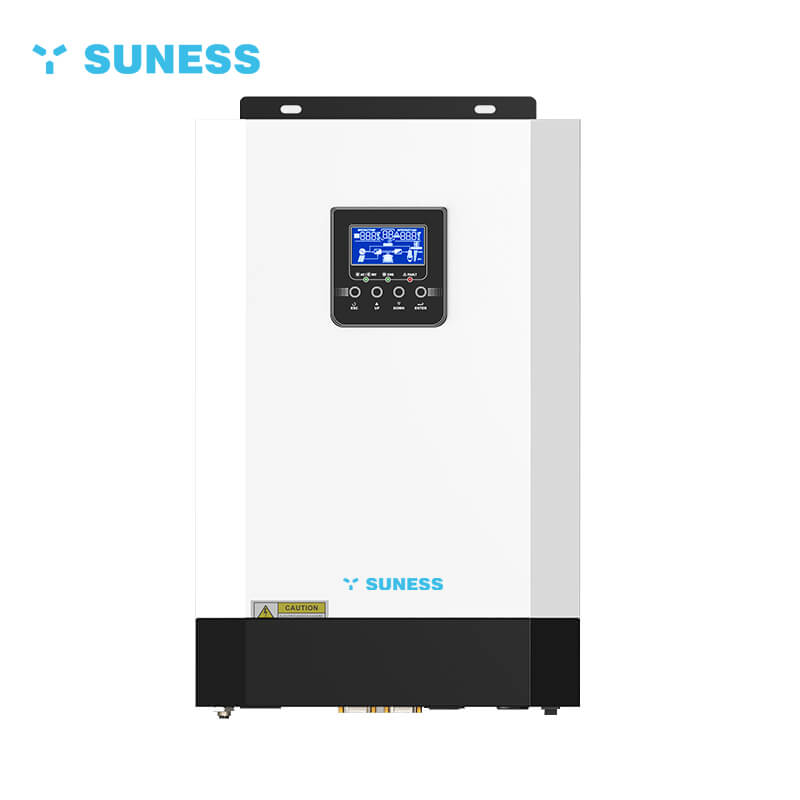

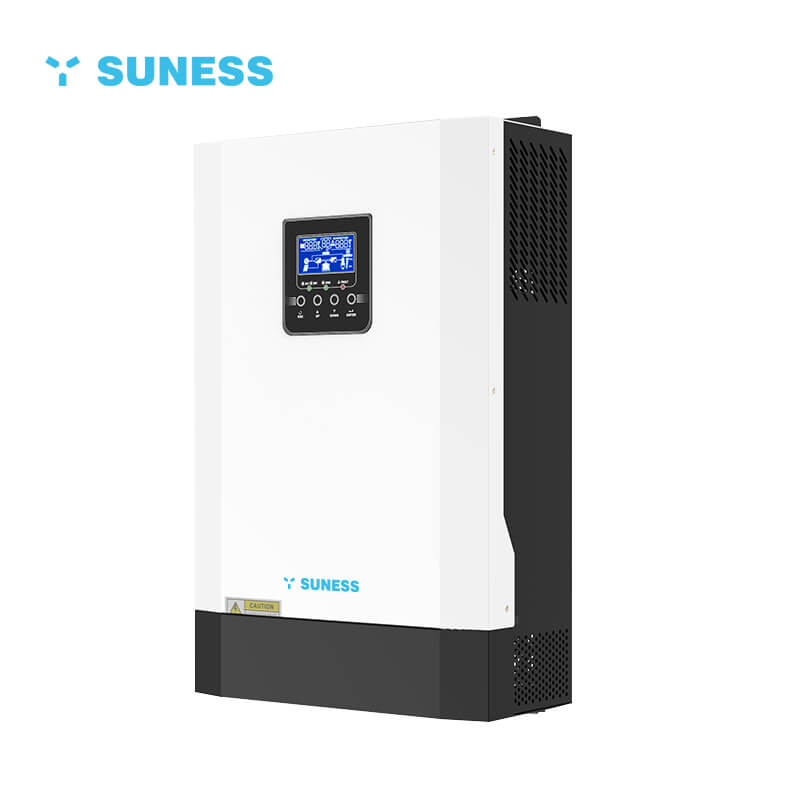

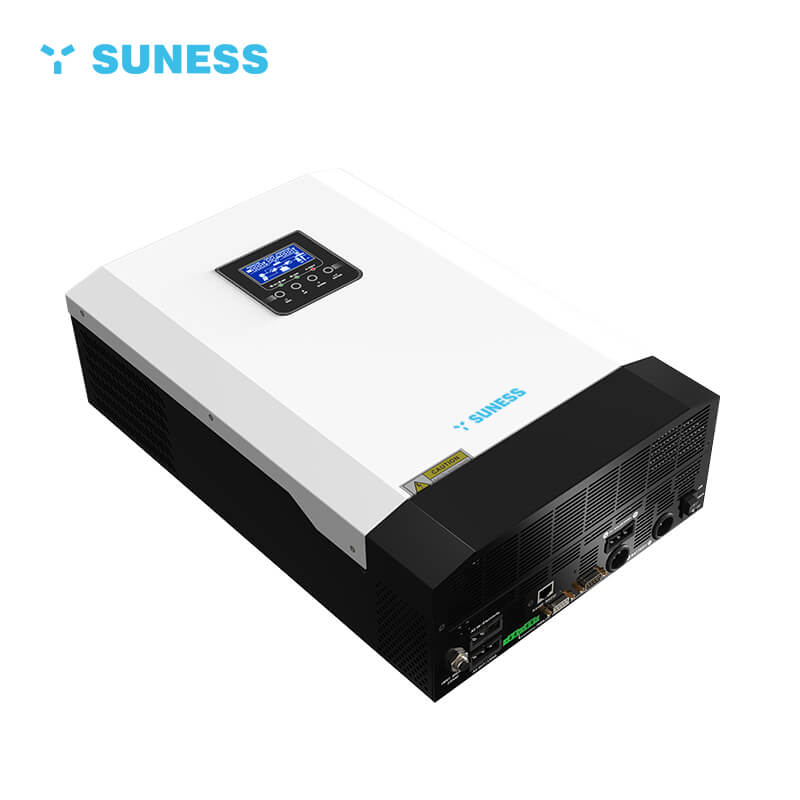

HIS3524 24V|Off Gird|Solar Inverter

ModelHIS3524
Rated outpot power(W)3500
MAX. PV Charging500V
Rated battery input Voltage24V

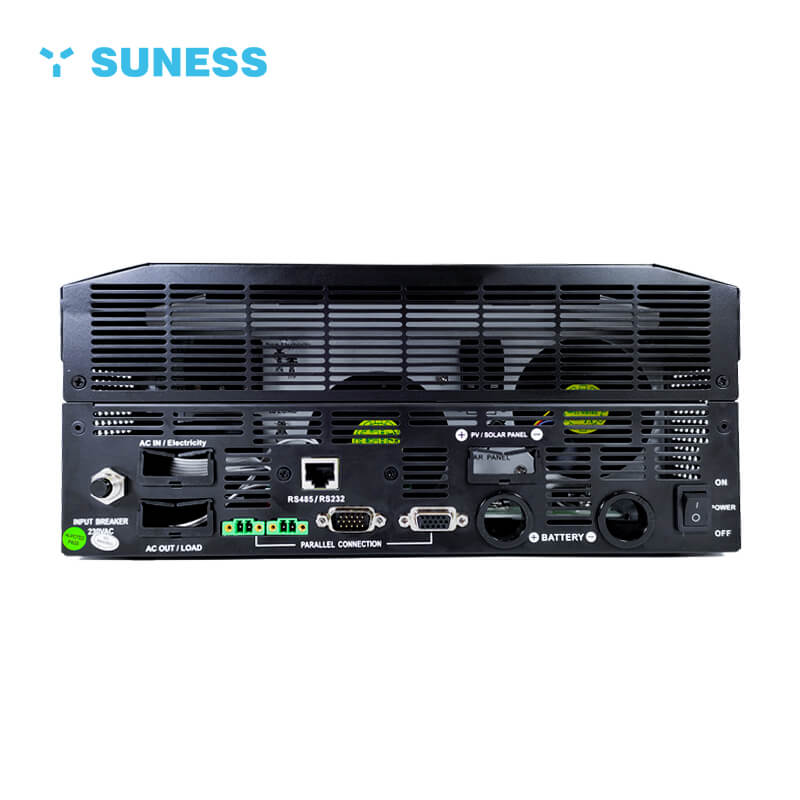

CommunicationRS485&RS232
ApplicationHome
Dimension[W×DxH,mm]472×298×129
Net Weight [Kg]9.5


Introduction

HIP Series

Pure sine wave output

Output power factor 1.0

Programmable supply priority for PV,battery or Grid

User-adjustable charge current and voltage

Wide PV input range(120Vdc-500Vdc),110A MPPT SCC

Working without batteries in sunny day

WiFi Monitoring Function(optional)

Anti-dusk kit for harsh environment

LCD remote control with 10 meters wire(optional)

PV and electricity complementary

Use with lithium batteries

Specification

INVERTER     MODELHIS-3524HIS-5548
Input  Voltage WaveformSinusoidal(utility or generator)
Nominal Input Voltage230Vac
Low Loss Voltage170Vac±7V(UPS)
90Vac±7V(Appliances)
Low Loss Return Voltage180Vac±7V(UPS);
100Vac±7V(Appliances)
High Loss Voltage280Vac±7V
High Loss Return Voltage270Vac±7V
Max AC Input Voltage300Vac
Nominal Input Frequency50Hz/ 60Hz(Auto detection)
Low Loss Frequency40±1Hz
Low Loss Return Frequency42±1Hz
High Loss Frequency65±1Hz
High Loss Return Frequency63±1Hz
Output Short Circuit Protection  Line mode:Circuit Breaker
Battery mode:Electronic Circuits
Efficiency(Line Mode)>95%(Rated R load, battery full charged)
Transfer Time10ms typical(UPS);
20ms typical(Appliances)
Utility Charging Mode
INVERTER    MODELHiS-3524HiS-5548
Charging  Current(UPS)
@ Nominal Input Voltage
80A80A
Charging Algorithm3-Step

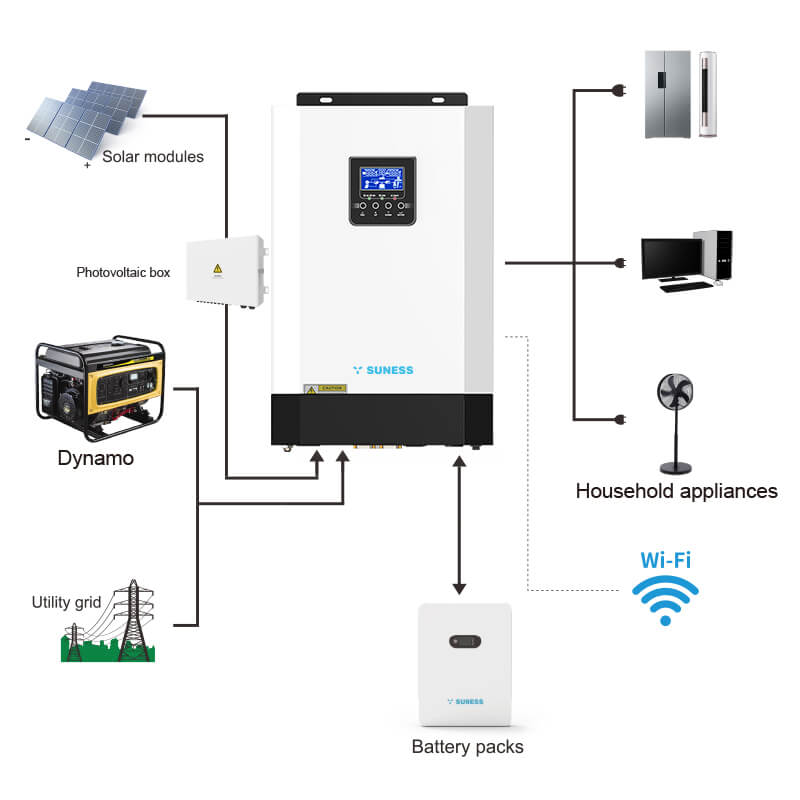

System connect

Solar Inverter Working Without Battery

3kva 24v mppt solar inverter

Solar Inverter Working With Battery

Solar inverter without battery
